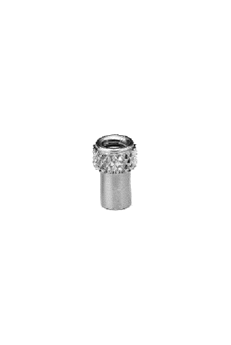

Molded Bullet-Nose Type Insert 10 Thread

Description

*Additional Dimensions Available

Thread Spec. Per MIL-S-7742
Brass per ASTM-B-16/16M-19
Aluminum per:
2011-ASTM-B211 AMS-QQ-A-225/3
6061-SAE AMS-QQ-A-200/8
6062-ASTM-B211
300 Series: QQ-A-764B ASTM A581/A582-12/A484-18A
Dimensional Limits plus or minus .003 unless specified
Minor Thread Diameter Tolerance +.003 / -.002

American Part Number	Thread Size	Minor Dia.	A	C	D	E	F	Knurl TPI
CB440	4-40	.089	.188	.171	.030	.075	.140	40
CB632	6-32	.110	.218	.201	.062	.100	.165	30
CB832	8-32	.136	.250	.225	.062	.125	.185	30
CB1032	10-32	.159	.281	.259	.062	.125	.230	30
*Additional Dimensions Available

T=Number Of Threads
American Thread Size	-6		-8		-10
	B	Ref	B	Ref	B	Ref
4-40	.281	.175	.344	.240	.406	.300
6-32	.344	.182	.406	.244	.484	.322
8-32	.344	.157	.406	.219	.484	.297
10-32	.438	.250	.531	.344	.531	.344

Metric Part Number	Minor Dia.	A	C	D	E	F	Knurl TPI
CBM3x0.5	.099	.188	.171	.030	.075	.140	40
CBM3.5x0.6	.115	.218	.201	.062	.100	.165	30
CBM4x0.7	.131	.250	.225	.062	.125	.185	30
CBM5x0.8	.166	.281	.259	.062	.125	.230	30
*Additional Dimensions Available

T=Number Of Threads
Metric Thread Size	-6		-8		-10
	B	Ref	B	Ref	B	Ref
M3x0.5	.281	.175	.344	.240	.406	.300
M3.5×0.6	.344	.182	.406	.244	.484	.322
M4x0.7	.344	.157	.406	.219	.484	.297
M5x0.8	.438	.250	.531	.344	.531	.344
