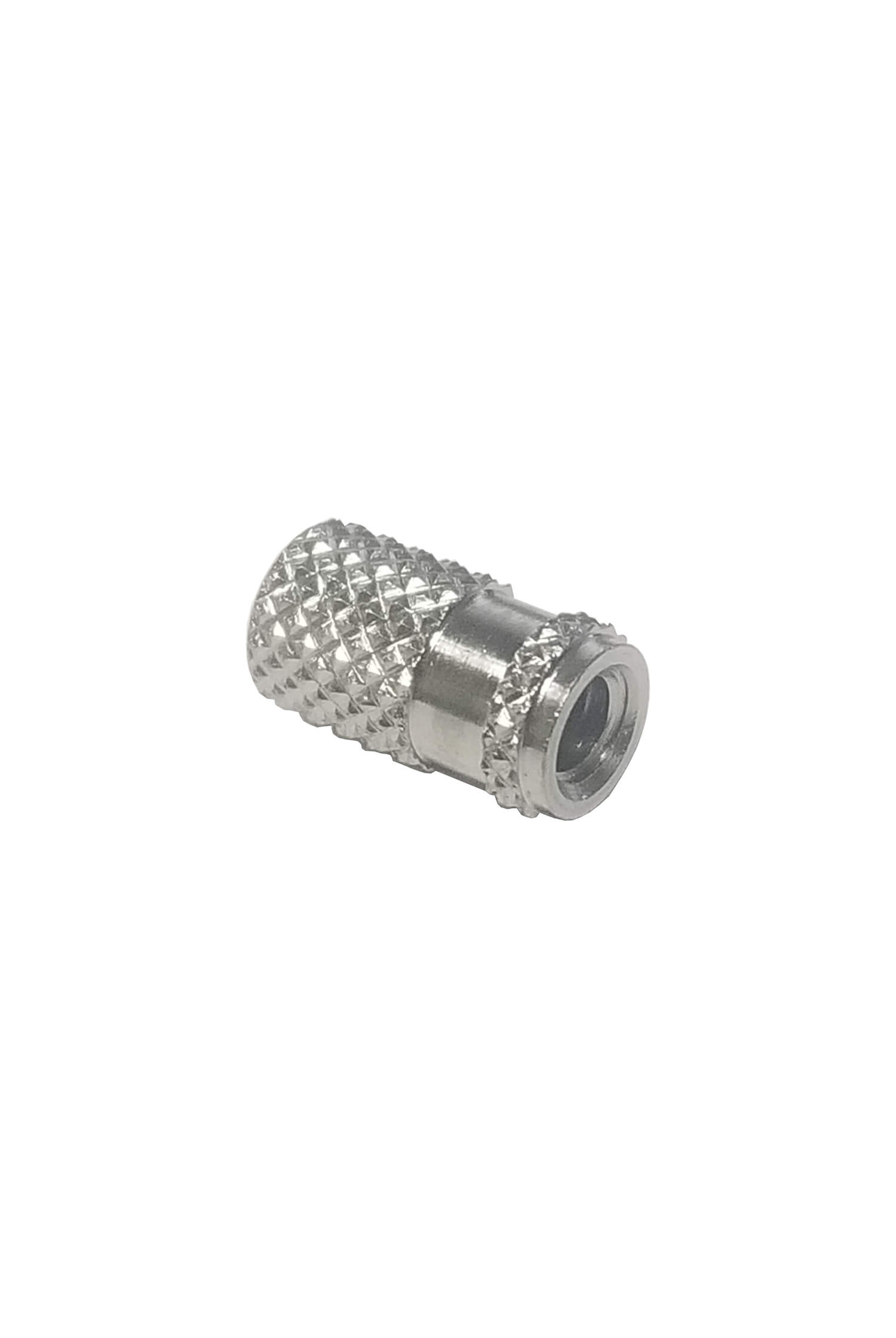

Molded Type Self Locking Blind Inserts 10 Thread

$0.00

SKU: N/A Category:

Description

*Non standard “D” dimension available in both .031 and .062 (CBL832-10 .031)

Thread Spec. Per MIL-S-7742
300 Series: QQ-A-764B ASTM A581/A582-12/A484-18A
Dimensional Limits plus or minus .003 unless specified

Also Available with Dry Film Lube per MIL-L-0046010 Rev. E Type l & AS5272
Thread Locking Feature per NASM-25027C
(B) Dash Number ±.005, Passivate Per AMS2700

American Part NumberThread SizeACDKnurl
TPI
CBL2562-56 .156.141.03040
CBL4404-40 .188.171.030*40
CBL6326-32 .218.201.062*30
CBL8328-32 .250.225.062*30
CBL102410-24 .281.259.062*30
CBL103210-32 .281.259.062*30
*Non standard "D" dimension available in both .030 and .062 (CBL832-8 .030)
B=DASH
Number Thread
Part Length
-6 -8 -10 -12
2-56 .219 .250 .290 .330
4-40 .281 .344 .406 .468
6-32 .344 .406 .484 .531
8-32 .344 .406 .484 .531
10-24 .438 .531 .625 .656
10-32 .438 .531 .531 .531
Also Available with Dry Film Lube per MIL-L-0046010 REV. E Type I & AS5272
Metric Part Number Thread SizeACDKnurl
TPI
CBLM2M2x0.4.156.141.03040
CBLM3M3x0.5.188.171.030*40
CBLM3.5M3.5x0.6.218.201.062*30
CBLM4M4x0.7.250.225.062*30
CBLM5M5x0.8.281.259.062*30
*Non standard "D" dimension available in both .030 and .062 (CBL832-8 .030)
B=DASH
Number Thread
Part Length
-6 -8 -10 -12
M2 .219 .250 .290 .330
M3 .281 .344 .406 .468
M3.5 .344 .406 .484 .531
M4 .344 .406 .484 .531
M5 .438 .531 .531 .531
Also Available with Dry Film Lube per MIL-L-0046010 REV. E Type I & AS5272

Additional information

Units

American, Metric

Material

Stainless Steel

Thread Size

2-56, 4-40, 6-32, 8-32, 10-24, 10-32, M2x0.4, M3x0.5, M3.5×0.6, M4x0.7, M5x0.8
