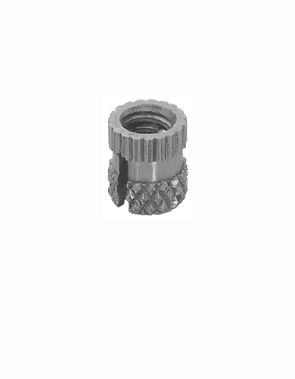

Post Molded Threaded Inserts (BPK)
$0.00
Description
All dimensions are in inches
Thread Spec. Per MIL-S-7742
(Collapsed slot and burrs may cause prevailing torque while thread accepts Class 3A/4h Screw).
Brass per ASTM-B-16/16M-19
| Part Number | A ±.005 |
E Dia. Nom. |
C Groove Dia. ±.010 |
L1 ±.010 |
L2 ±.010 |
S ±.015 |
W ±.015 |
Hole Size in Material | |
|---|---|---|---|---|---|---|---|---|---|
| Min. Hole Depth |
Hole Dia. ±.002 |
||||||||
| BPK440 | .188 | .156 | .138 | .055 | .080 | .140 | .020 | .206 | .156 |
| BPK632 | .250 | .188 | .165 | .075 | .105 | .190 | .030 | .285 | .188 |
| BPK832 | .312 | .219 | .195 | .095 | .130 | .235 | .045 | .355 | .219 |
| BPK1032 | .375 | .250 | .235 | .110 | .160 | .280 | .060 | .415 | .250 |
| BPK1024 | .375 | .250 | .235 | .110 | .160 | .280 | .060 | .415 | .250 |
| BPK25020 | .500 | .312 | .290 | .150 | .210 | .375 | .080 | .540 | .312 |
| All dimensions are in inches. | |||||||||
Additional information
| Units | American, Metric |
|---|---|
| Thread Size | 4-40, 6-32, 8-32, 10-24, 10-32, 1/4''20, M3x0.5, M3.5×0.6, M4x0.7, M5x0.8, M6x1.0 |
| Material | Brass |
