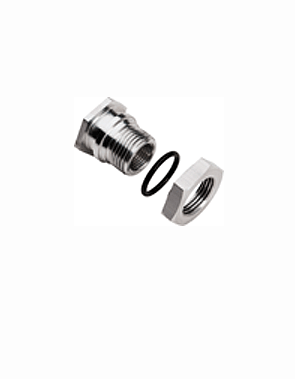

Rotational Mold Bulkhead Inserts
Description
** Material size may vary, due to availability.
| Part Number | Thread Size | A** ±.015 | B ±.015 | C ±.003 | D ±.003 | Recommended Bushing Size E +.005 -.000 |
|---|---|---|---|---|---|---|
| RM 1/4_BH* | 1/4" NPT | 1.125 | .625 | 1.125 | .870 | .875 |
| RM 3/8_BH* | 3/8" NPT | 1.125 | .625 | 1.125 | .870 | .875 |
| RM 1/2_BH* | 1/2" NPT | 1.50 | .750 | 1.250 | 1.245 | 1.25 |
| RM 3/4_BH* | 3/4" NPT | 1.75 | .875 | 1.375 | 1.495 | 1.50 |
| RM 1_BH* | 1" NPT | 2.00 | 1.00 | 1.50 | 1.745 | 1.75 |
| **Material size may vary, due to availability. | ||||||
Additional information
| Thread Size | 1/4'' NPT, 3/8'' NPT, 1/2'' NPT, 3/4'' NPT, 1'' NPT |
|---|---|
| Material | Brass, Aluminum |
