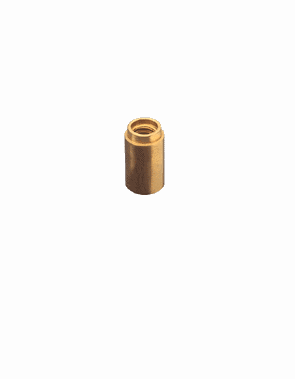

Swage Type Thread Self Locking Insert 6 Thread

$0.00

SKU: N/A Category:

Description

Thread Spec. Per MIL-S-7742
300 Series: QQ-A-764B ASTM A581/A582-12/A484-18A
Dimensional Limits plus or minus .003 unless specified

Also Available with Dry Film Lube per MIL-L-0046010 Rev. E Type l & AS5272
Thread Locking Feature per NASM-25027C
(B) Dash Number ±.005, Passivate Per AMS2700

For number of threads, insert prefix number in prefix position
For “D” dimension (Shank Length), insert dash number in suffix position





Part Number Metric Equiv. A C
+.001 -.002
E
±.005
F “D” Dimension=Shank Length
.020 .030 .040 .050 .060 .070 .080 .100
CSL256 CSLM2 .156 .125 .030 .096 -2 -3 -4 -5 -6
CSL440 CSLM3 .188 .156 .030 .128 -2 -3 -4 -5 -6
CSL632 CSLM3.5 .218 .188 .040 .152 -2 -3 -4 -5 -6 -7 -8
CSL832 CSLM4 .250 .213 .040 .177 -2 -3 -4 -5 -6 -7 -8
CSL1024 .312 .249 .050 .201 -2 -3 -4 -5 -6 -7 -8 -10
CSL1032 CSLM5 .312 .249 .050 .201 -2 -3 -4 -5 -6 -7 -8 -10



Prefix= Min. Number Of Threads
Thread Size 6 8 10 12
B=±.005
256 / M2 N/A .281 .344 .375
440 / M3 .312 .375 .437 .484
632 / M3.5 .375 .438 .515 .563
832 / M4 .375 .438 .515 .563
1024 / – .438 .563 .656 .750
1032 / M5 .438 .563 .563 .563

Additional information

Units

American, Metric

Material

Stainless Steel

Thread Size

2-56, 4-40, 6-32, 8-32, 10-24, 10-32, M2x0.4, M3x0.5, M3.5×0.6, M4x0.7, M5x0.8

Shank Length

2 (0.02), 3 (0.03), 4 (0.04), 5 (0.05), 6 (0.06), 7 (0.07), 8 (0.08), 10 (0.10)
